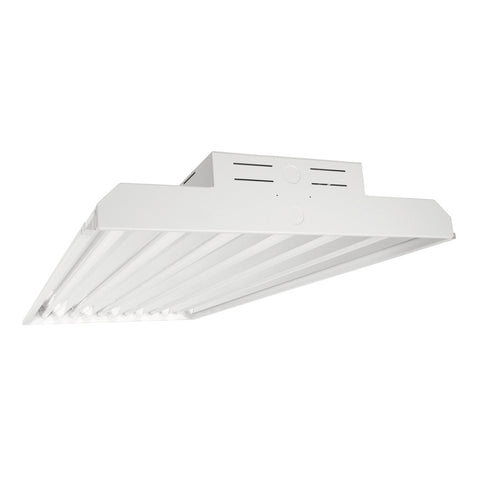

T5HO CLS 6 & 8 LAMP LINEAR FLUORESCENT LIGHTING FIXTURE

Features:

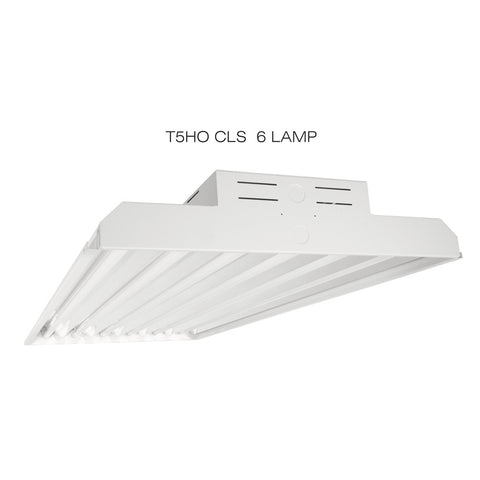

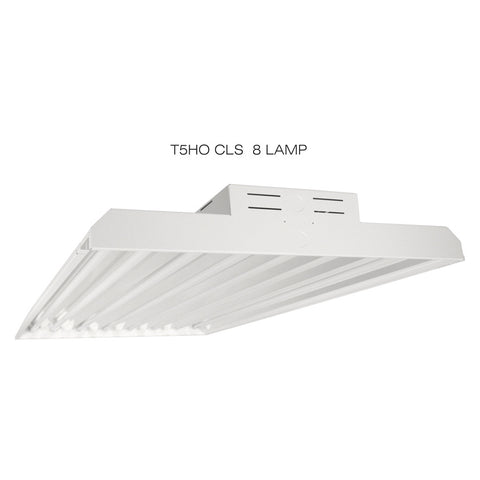

• Available in 6 and 8 lamp configurations
• Code-Gauge Post-Powdercoat CRS Housing is standard
• Housing is vented to keep ballast cool & provides optimal performance in a wide range of operating temperatures
• T5HO lamps and ballasts save more than 50% over older HID and T12 Fluorescent lighting systems
• T5HO lamps are rated for up to 35,000 hours, nearly twice that of typical fluorescent and HID lamps
• HID light levels drop as much as 60% as the lamps age, while T5HO light levels maintain 95% over the life of the lamp
• T5HO ballast technology eliminates flicker and provides instant on and instant restrike while maintaining light levels
• T5HO lamps are 80CRI or greater, providing excellent color quality over the life of the lamp, thus enhancing visual comfort
• Factory Installed Occupancy Sensors with Auto on/off functions available for energy savings and extended life
• Simple, Tool-less Maintenance With A Center Wireway OR Patented ‘Push-Button’ Access
• Surface, Chain or Pendant mounting options available
• UL Listed for Dry Damp Locations

Applications:

• Manufacturing facilities
• Distribution and warehouse centers
• Processing and production plants
• All High Bay Locations
