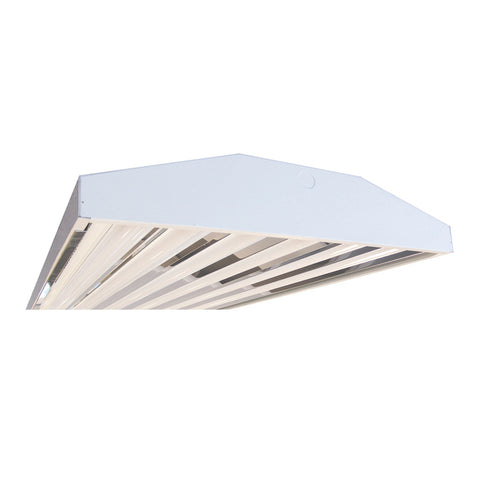

T8 FLUORESCENT T8L 4, 5, 6 & 8 LAMP LINEAR LIGHTING FIXTURE

Features:

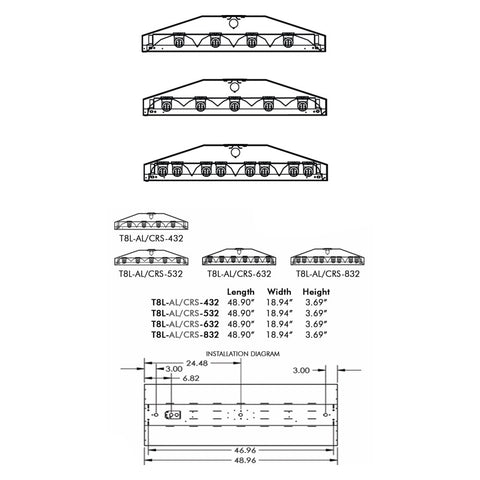

• Available in 4, 5, 6 and 8 lamp configurations
• Aluminum housing is standard. Code-Gauge post-powdercoat CRS Housing is optional
• Vented aluminum housing construction provides optimal ballast performance and long life.
• Specular Miro4® reflectors standard
• Occupancy sensor with auto on/off functions available for energy savings and extended life
• Housing is vented to keep ballast cool & provides optimal performance in a wide range of operating temperatures
• T8 Lamp/Electronic Ballast combinations save more than 50% over older HID and T12 Fluorescent lighting systems
• T8 lamps are rated for up to 36,000 hours, nearly twice that of typical fluorescent and HID lamps when used with programmed start ballasts
• HID light levels drop as much as 60% as the lamps age. New T8 light levels maintain up to 95% over the life of the lamp
• T8 ballast technology eliminates flicker and provides instant on & instant restrike while maintaining light levels during power dips & peaks
• T8 lamps are 70CRI or greater, providing excellent color quality over the life of the lamp, enhancing visual comfort
• Factory Installed Occupancy Sensors with Auto on/off functions are available for energy savings and extended life using Programmed-Start Ballast technology and integral sensor design

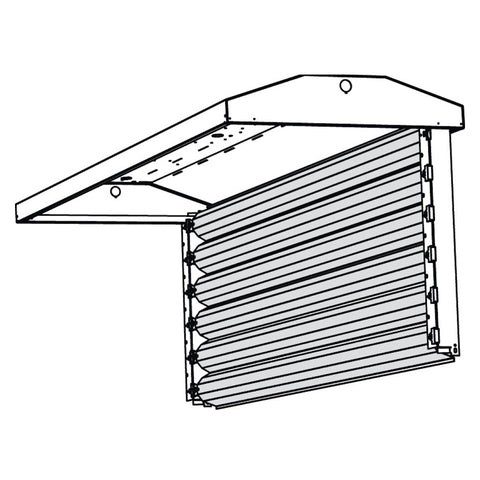

• Simple, tool-less maintenance and patented ‘Push-Button’ access. Lamp tray swings out of the way without removing lamps for access to the ballast compartment
• Surface, chain or pendant mounting options available
• UL Listed for Dry Damp Locations

Applications:

• Manufacturing facilities
• Distribution and warehouse centers
• Processing and production plants
• All High Bay Locations
