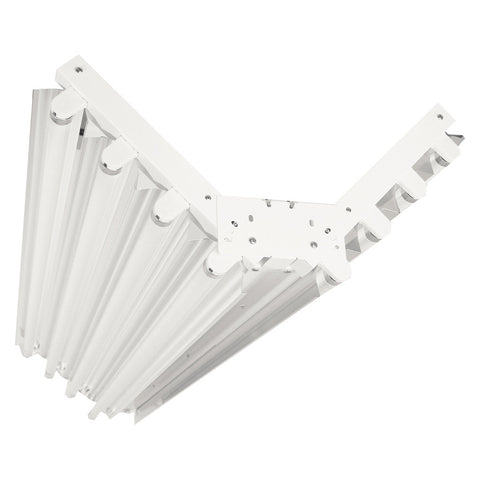

T5HO FLUORESCENT ADJUSTABLE 6 & 8 LAMP LINEAR LIGHTING FIXTURES

Features:

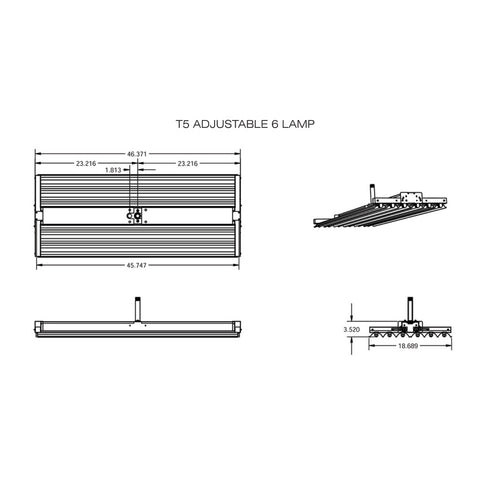

  • Available in 6 lamp (T5AJ 654) and 8 lamp (T5AJ 854) configurations
  • Aluminum Housing is standard. Code Gauge Post-Powdercoat CRS Housing is optional
  • Housing is vented to keep ballast cool in a wide range of operating temperatures
  • Standard specular >94% MIRO4® reflector with >92% white reflectors available
  • 120 or 277V, 75°C programmed start ballasts are standard. Universal voltage or 347 and 480V and 90°C ballasts as well as other options are available upon request

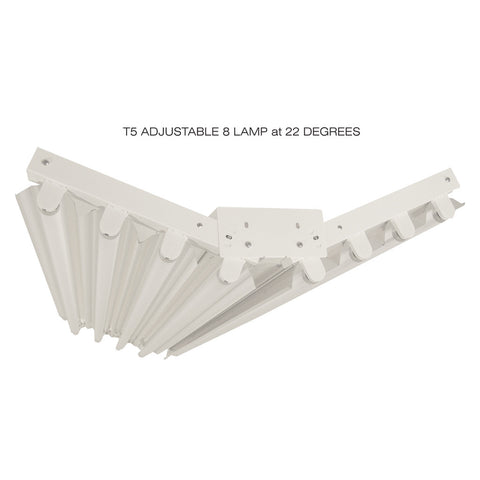

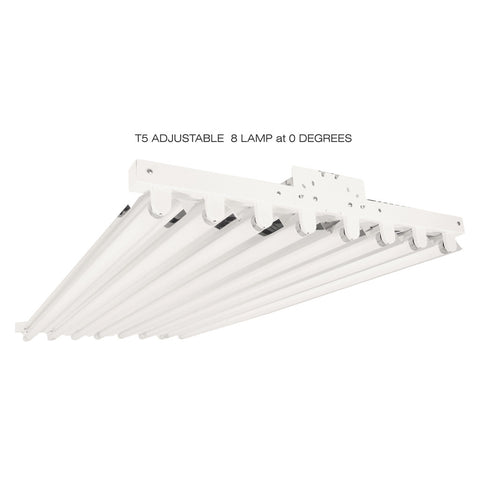

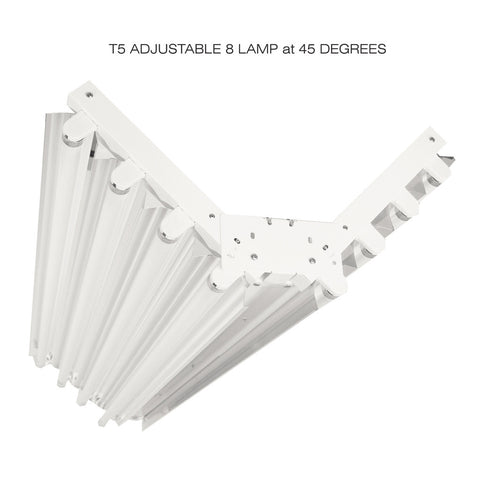

  • Patented 3-In-1 Adjustability - AEI’s light and durable design features patented 3-In-1 adjustability -- three fixtures in one and a shipping adjustment for freight savings
  • T5HO lamps and ballasts save more than 50% over older HID and T12 Fluorescent lighting systems
  • T5HO lamps are rated for up to 35,000 hours, nearly 2X that of typical fluorescent & HID lamps
  • HID light levels drop as much as 60% as the lamps age while T5HO light levels maintain 95% over the life of the lamp
  • T5HO ballast technology eliminates flicker and provides instant on and instant restrike while maintaining light levels during dips and peaks
  • T5HO lamps are 80CRI or greater, providing excellent color qualifty over the life of the lamp, thus enhancing visual comfort
  • Occupancy sensor with auto on/off functions available for energy savings and extended life
  • V-Hooks and center bracket for pendant mounting are standard
  • UL Listed for Damp Locations

Applications:

  • Manufacturing facilities
  • Distribution and warehouse centers
  • Processing and production plants
  • All High Bay Locations
