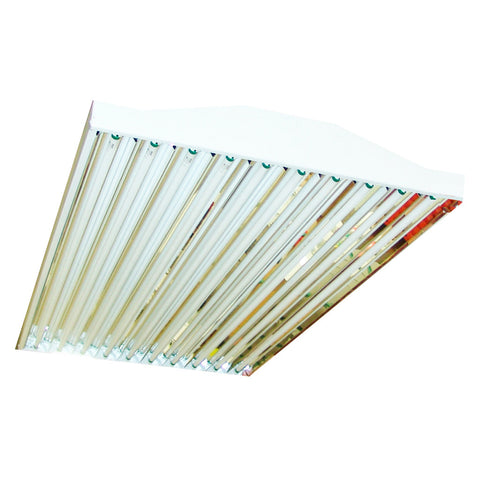

T5HO FLUORESCENT T5L 10 & 12 LAMP LINEAR LIGHTING FIXTURE

Features:

  • Available in 10 and 12 lamp configurations
  • Aluminum housing is standard. Code-Gauge post-powdercoat CRS Housing is optional
  • Specular Miro4® reflectors standard
  • Occupancy sensor with auto on/off functions available for energy savings and extended life
  • Housing is vented to keep ballast cool & provides optimal performance in a wide range of operating temperatures
  • T5HO lamps and ballasts save more than 50% over older HID and T12 Fluorescent lighting systems
  • T5HO lamps are rated for up to 35,000 hours, nearly twice that of typical fluorescent and HID lamps
  • HID light levels drop as much as 60% as the lamps age, while T5HO light levels maintain 95% over the life of the lamp
  • T5HO ballast technology eliminates flicker and provides instant on and instant restrike while maintaining light levels
  • T5HO lamps are 80CRI or greater, providing excellent color quality over the life of the lamp, thus enhancing visual comfort

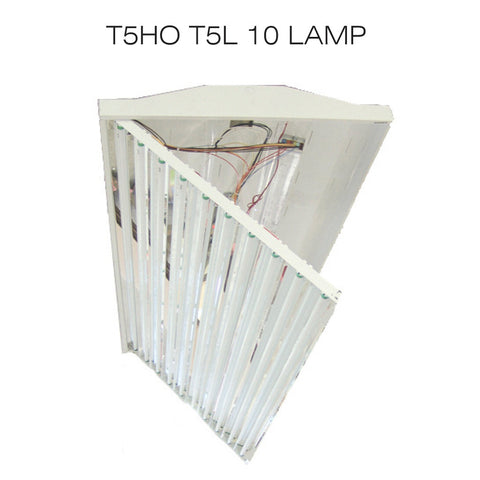

  • Simple, tool-less maintenance and patented ‘Push-Button’ access. Lamp tray swings out of the way without removing lamps for access to the ballast compartment.
  • Surface, chain or pendant mounting options available
  • UL Listed for Dry Damp Locations

Applications:

  • Manufacturing facilities
  • Distribution and warehouse centers
  • Processing and production plants
  • All High Bay Locations
