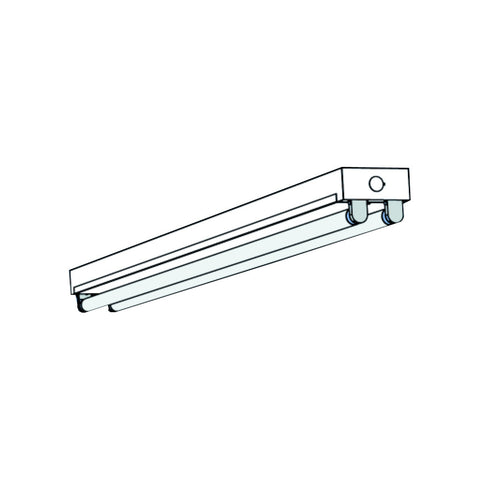

T8 FLUORESCENT T8ST 1, 2 & 4 LAMP MINI-STRIP 4 & 8 FEET LIGHTING FIXTURES

Features:

  • Available in 4-foot 32-Watt 1 lamp (T8ST-4FT-132), 2 lamp (T8ST-4FT-232) or 4 lamp (T8ST-4FT-432) cross sections OR 8-foot 32-Watt 1 lamp (T8ST-8FT-132), 2 lamp (T8ST-8FT-232) or 4 lamp (T8ST-8FT-432) cross sections
  • Post-Powdercoat CRS Housing is standard with 7/8, 3/4 and 2-inch knockouts standard for easy mounting
  • Standard white ballast cover is 90% reflective. Specular Miro4® and white reflectors available
  • 120-277V, 75°C instant start ballasts are standard. Universal voltage, 347-480V & 90°C ballasts as well as other options are available upon request. Emergency ballasts available
  • Access to all internal components without the use of tools
  • New T8 lamp/electronic ballast combinations save more than 50% over older HID and T12 Fluorescent lighting systems
  • T8 lamps are rated for up to 36,000 hours when used with programmed start ballasts, nearly twice that of typical HID and fluorescent
  • HID light levels drop as much as 60% as the lamps age, while new T8 light levels maintain 95% over the life of the lamp
  • T8 ballast technology eliminates flicker and provides instant on and instant restrike while maintaining light levels
  • T8 lamps are 70CRI or greater, providing excellent color quality over the life of the lamp, enhancing visual comfort
  • Designed for easy surface, chain or pendant mounting
  • UL Listed for Damp Locations

Applications:

  • Production and processing facilities
  • Manufacturing plants
  • Distribution Centers & Warehouses
  • Most Industrial High Bay Applications
